Attachment ring shaft
Our wide range of round wire-retaining rings is used for locking on shafts. The attachment ring shaft is offered in spring steel as well as stainless spring steel. The standard dimensions according to DIN 9925 (previously DIN 7993).
ISO6931-1
EN 10270-1-SH
Untreated

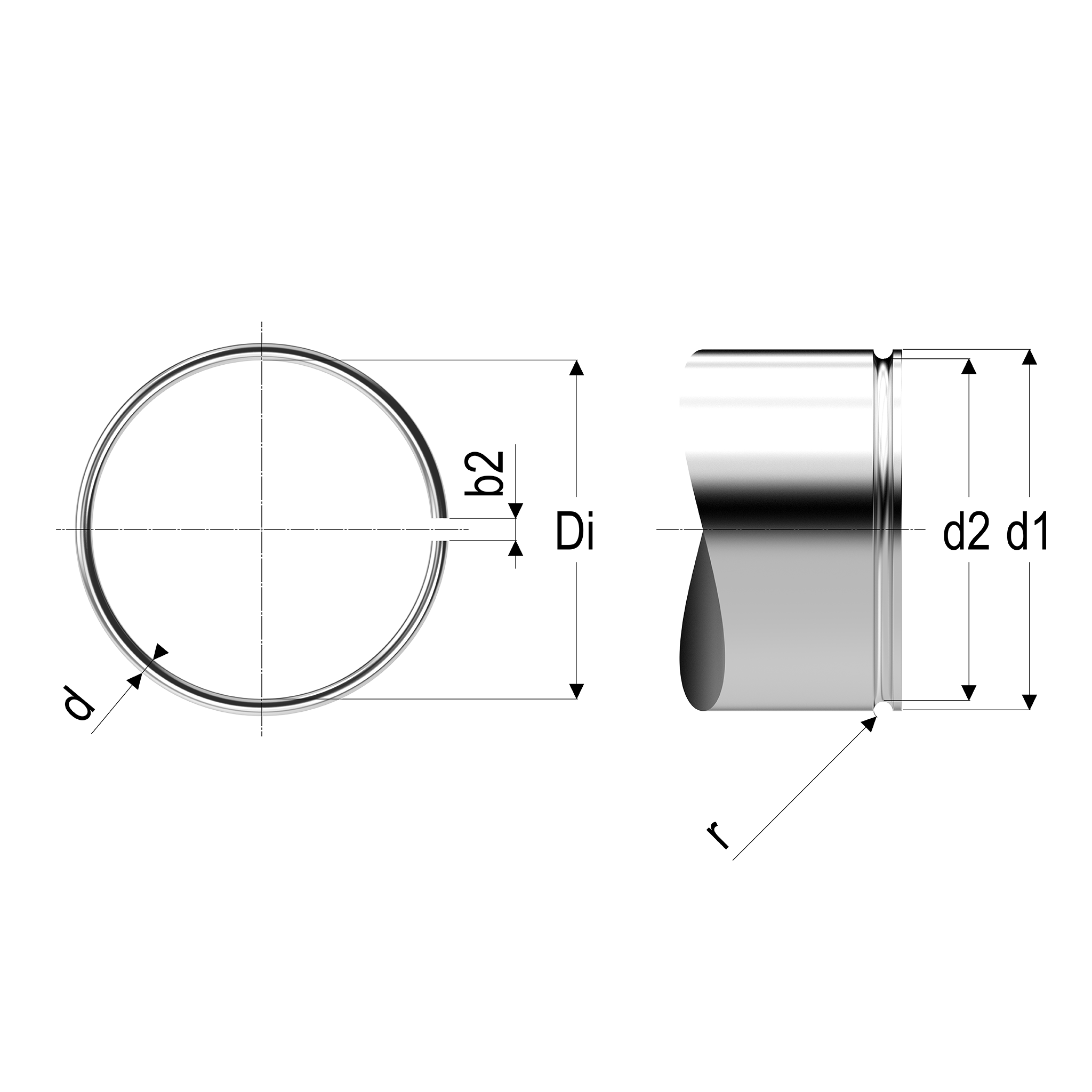

| 70 items | Di (mm) | d (mm) | d1 (mm) | d2 (mm) | Mtr | S | ||
|---|---|---|---|---|---|---|---|---|
| 3.1 | 0.8 | 4 | 3.2 | EN 10270-1-SH | Untreated | ||
| 3.1 | 0.8 | 4 | 3.2 | ISO6931-1 | Untreated | ||
| 4.1 | 0.8 | 5 | 4.2 | EN 10270-1-SH | Untreated | ||
| 4.1 | 0.8 | 5 | 4.2 | ISO6931-1 | Untreated | ||
| 5.1 | 0.8 | 6 | 5.2 | ISO6931-1 | Untreated | ||
| 5.1 | 0.8 | 6 | 5.2 | EN 10270-1-SH | Untreated | ||
| 6.1 | 0.8 | 7 | 6.2 | EN 10270-1-SH | Untreated | ||
| 6.1 | 0.8 | 7 | 6.2 | ISO6931-1 | Untreated | ||
| 7.1 | 0.8 | 8 | 7.2 | ISO6931-1 | Untreated | ||
| 7.1 | 0.8 | 8 | 7.2 | EN 10270-1-SH | Untreated |
Displaying 10 of 70
