    Die spring 4-10025

    List price

    4.91 EUR/pcs

    incl. VAT

    1854 in stock
    QuantityList price
    Buy 1 - 9 at the price of4.91 EUR/pcs
    Buy 10 - 24 at the price of4.67 EUR/pcs
    Buy 25 - 49 at the price of4.39 EUR/pcs
    Buy 50 - 99 at the price of4.15 EUR/pcs
    Buy 100 - 199 at the price of3.92 EUR/pcs

    If a larger quantity is desired please contact customer support for price

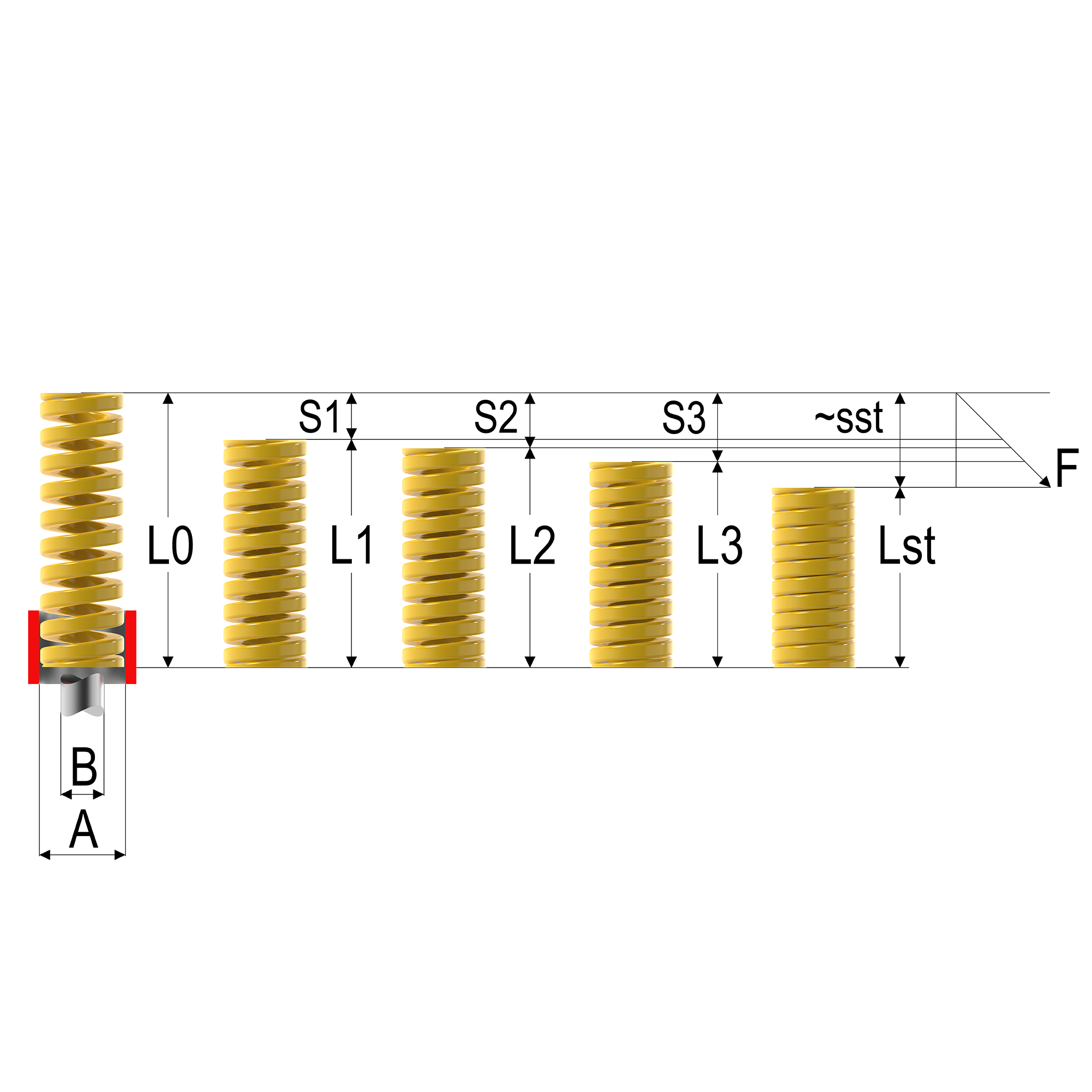

Dimensions and characteristics

AHole diameter
10 mm
BShaft diameter
5 mm
L0Unloaded length
25 mm
F3Force at s3
232 N
FcForce class
4-Yellow
RSpringrate
36.8 N/mm
s1Spring deflection at F1
4.3 mm
F1Force at s1
158 N
s2Spring deflection at F2
5 mm
F2Force at s2
184 N
s3Spring deflection at F3
6.3 mm
~sstSpring deflection at solid length
7.7 mm
tWire thickness
1.25 mm
wWire width
2.5 mm
VsDie spring type
ISO 10243
