  • 61150

    Die spring 5-10025

    List price

    8.84 EUR/pcs

    incl. VAT

    71 in stock
    QuantityList price
    Buy 1 - 9 at the price of8.84 EUR/pcs
    Buy 10 - 24 at the price of8.41 EUR/pcs
    Buy 25 - 49 at the price of7.97 EUR/pcs
    Buy 50 - 99 at the price of7.53 EUR/pcs
    Buy 100 - 199 at the price of7.09 EUR/pcs

    If a larger quantity is desired please contact customer support for price

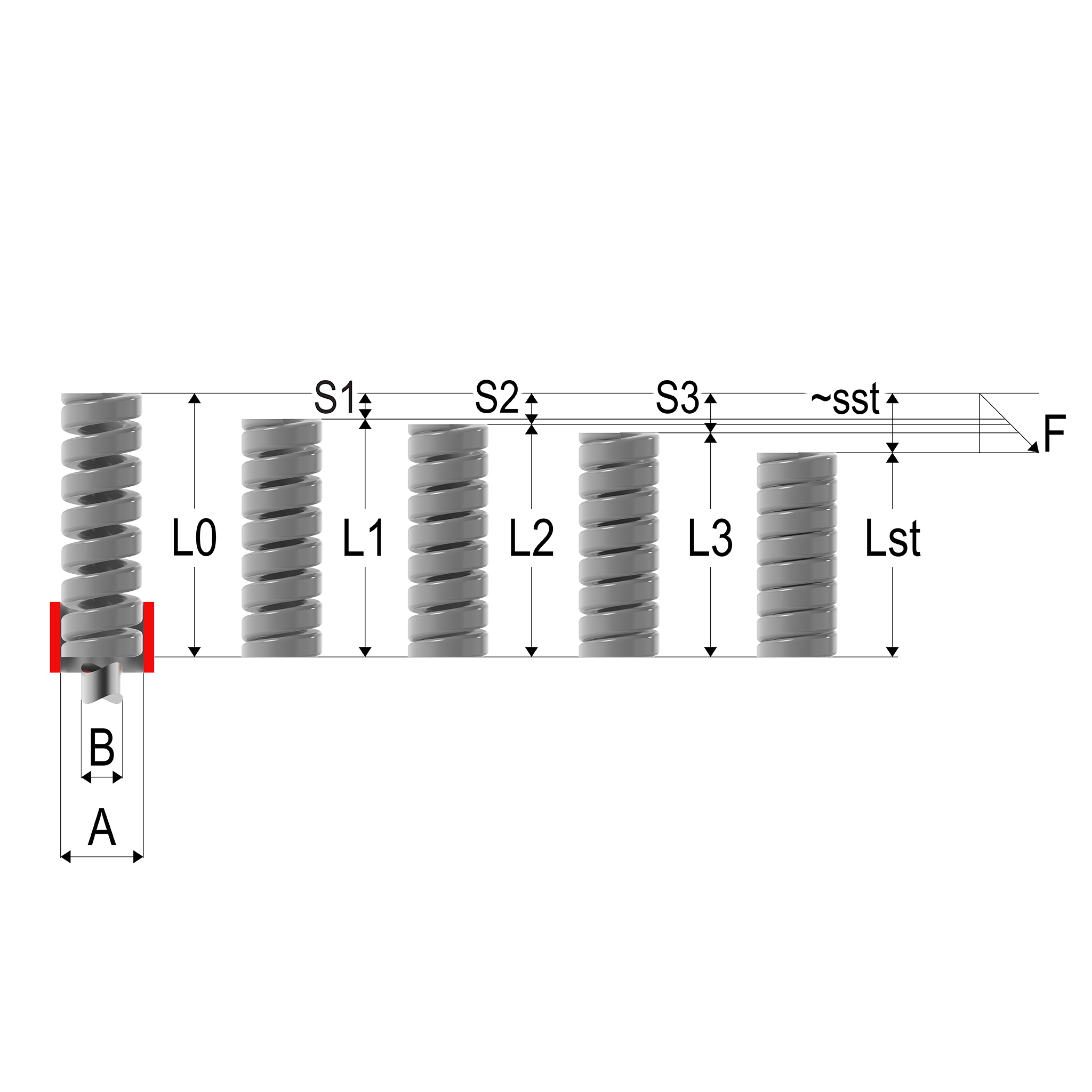

Dimensions and characteristics

AHole diameter
10 mm
BShaft diameter
5 mm
L0Unloaded length
25 mm
F3Force at s3
564 N
FcForce class
5-Grey
RSpringrate
167 N/mm
s1Spring deflection at F1
2.5 mm
F1Force at s1
418 N
s2Spring deflection at F2
3 mm
F2Force at s2
501 N
s3Spring deflection at F3
3.4 mm
~sstSpring deflection at solid length
5.9 mm
tWire thickness
1.25 mm
wWire width
2.5 mm
VsDie spring type
ISO 10243
