  • 61000

    Die spring L-10025

    The spring will be delivered in green or purple.

    List price

    3.98 EUR/pcs

    incl. VAT

    61 in stock
    QuantityList price
    Buy 1 - 9 at the price of3.98 EUR/pcs
    Buy 10 - 24 at the price of3.77 EUR/pcs
    Buy 25 - 49 at the price of3.58 EUR/pcs
    Buy 50 - 99 at the price of3.35 EUR/pcs
    Buy 100 - 199 at the price of3.16 EUR/pcs

    If a larger quantity is desired please contact customer support for price

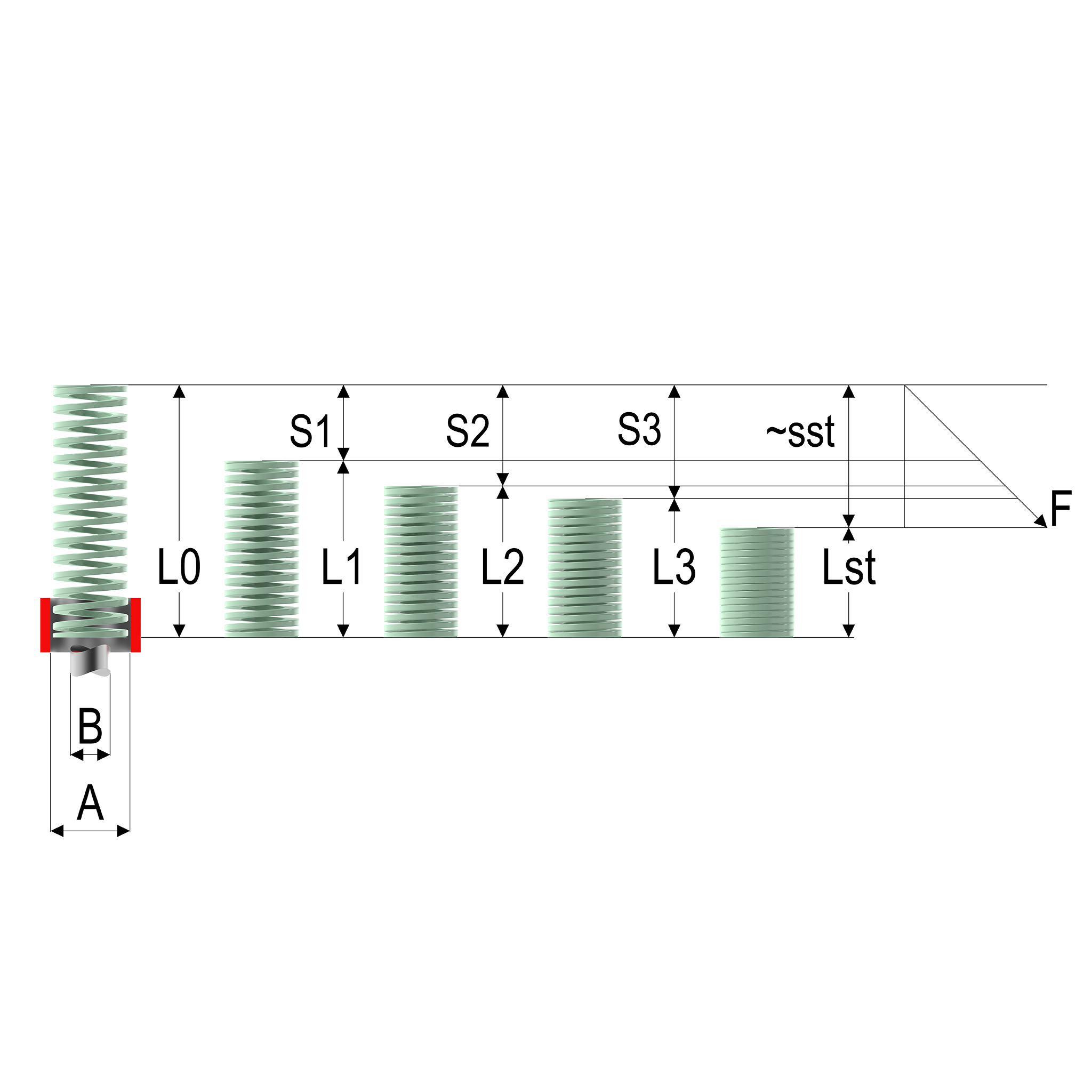

Dimensions and characteristics

AHole diameter
10 mm
BShaft diameter
5 mm
L0Unloaded length
25 mm
F3Force at s3
96 N
FcForce class
L-Green/Purple
RSpringrate
8.5 N/mm
s1Spring deflection at F1
7.5 mm
F1Force at s1
64 N
s2Spring deflection at F2
10 mm
F2Force at s2
85 N
s3Spring deflection at F3
11.25 mm
~sstSpring deflection at solid length
14.1 mm
tWire thickness
1.25 mm
wWire width
2.5 mm
VsDie spring type
ISO 10243
