Locking pins S & R

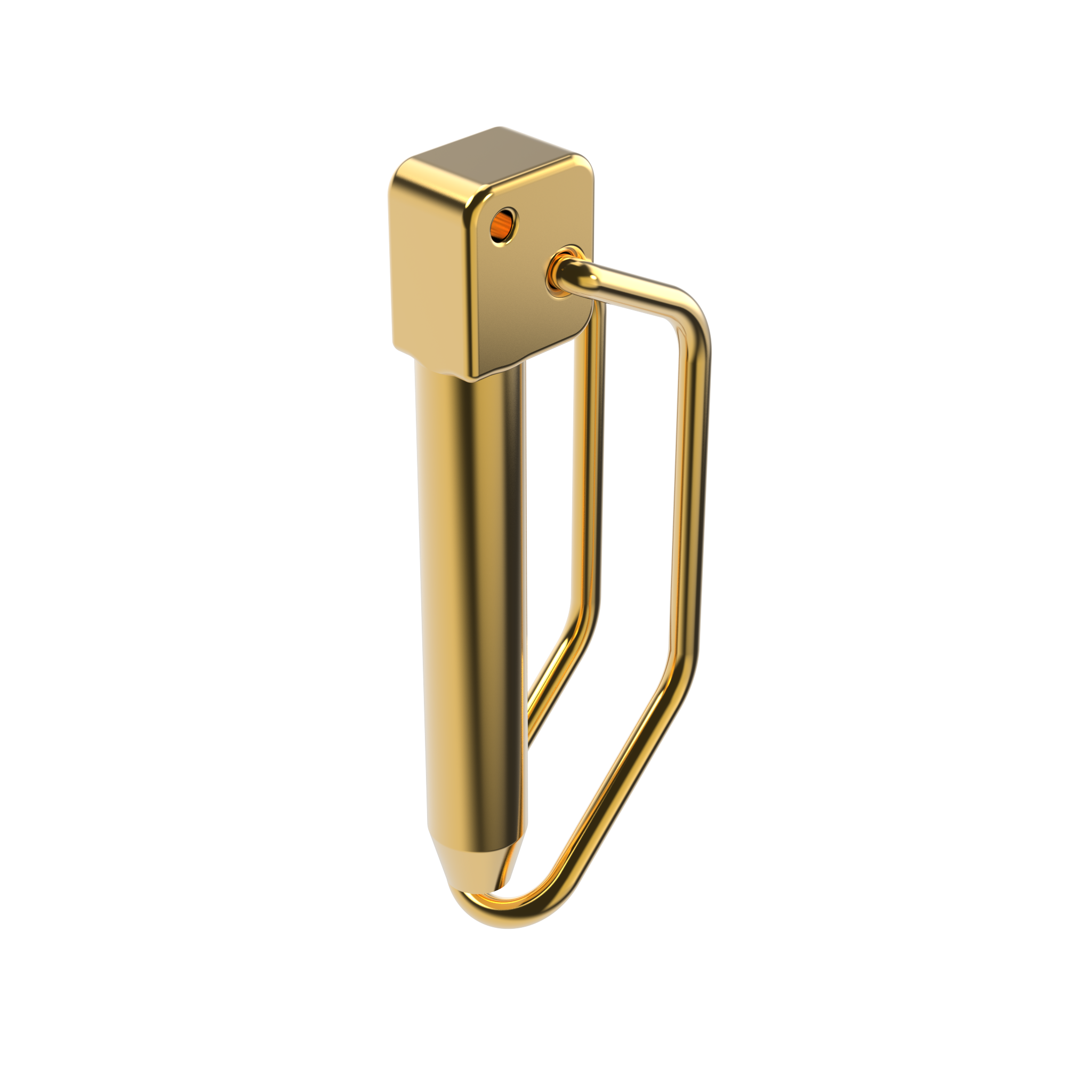

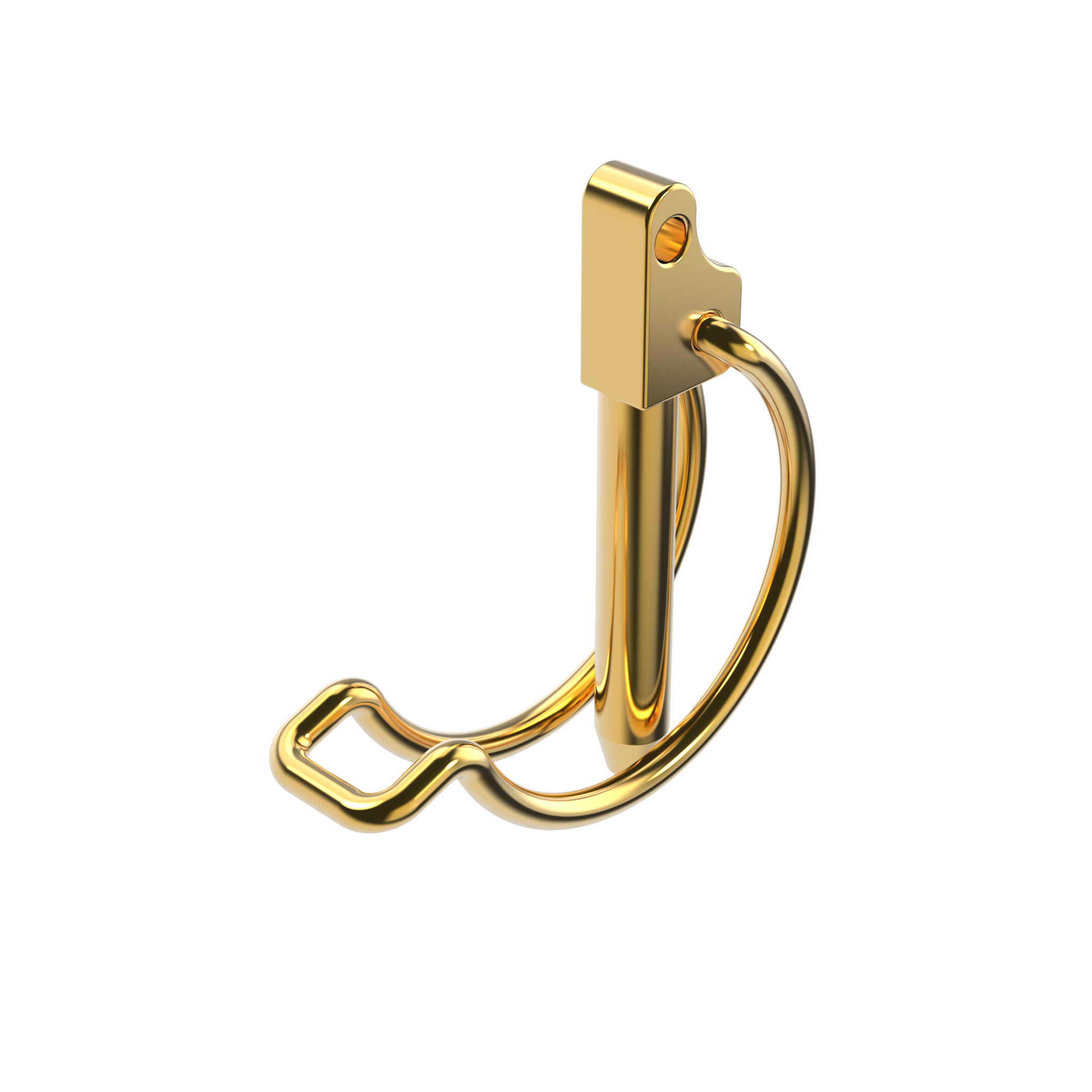

The locking pin S & R for square tubes with a teardrop-shaped shaft pin is made from spring steel and is part of our locking springs range. Available surface treatments for the locking pin include galvanizing and yellow chromating.

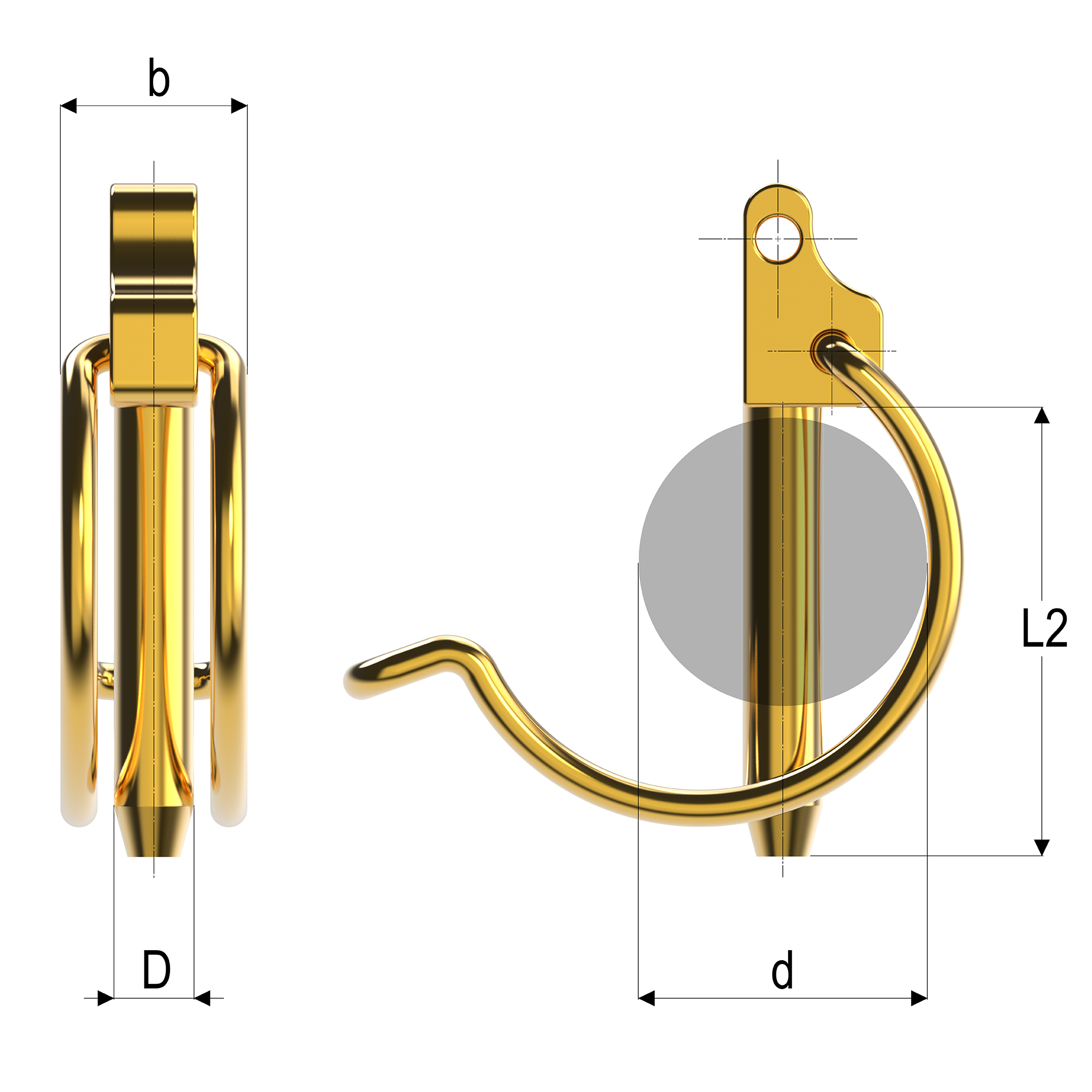

| 7 items | D (mm) | d (mm) | L2 (mm) | b (mm) | ||
|---|---|---|---|---|---|---|
 | 4.7 | 30 | 32 | 14.5 | ||
| 7.5 | 35 | 42 | 17.5 | ||
 | 9.5 | 40 | 55 | 16 | ||
| 9.5 | 50 | 65 | 21 | ||
| 10.5 | 40 | 45 | 17.5 | ||
| 11.5 | 50 | 55 | 25.5 | ||
| 11.5 | 60 | 75 | 23 |
Displaying 7 of 7
