Vibrator springs
Our vibrator spring is a compression spring with end coils brought to the center for easy attachment with a bolt. The spring is used in vibrators and similar applications. Our vibrator spring is designed to meet the toughest requirements and is delivered without a bolt to give you the flexibility to customize according to your specific needs.
M12
M8
M6
M10
M16

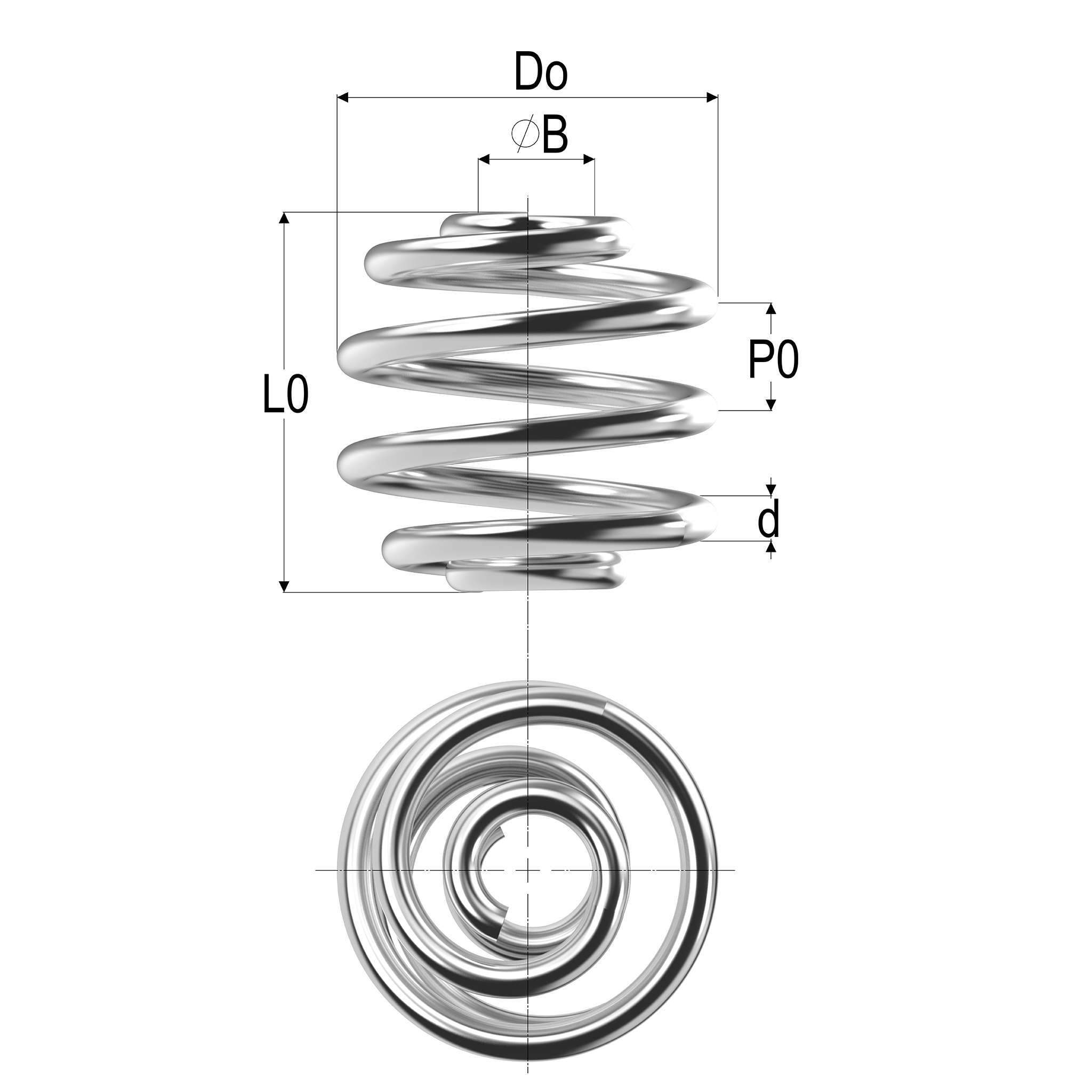

| 20 items | d (mm) | Do (mm) | L0 (mm) | Fn (N) | Ln (mm) | B | R (N/mm) | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 26 | 30 | 328 | 18 | M6 | 27 | ||
| 3 | 30 | 40 | 294 | 20 | M6 | 14 | ||
| 3.5 | 31 | 35 | 445 | 20 | M6 | 28 | ||
| 3.5 | 35 | 45 | 387 | 27 | M6 | 19 | ||
| 4 | 34 | 40 | 590 | 25 | M8 | 30 | ||
| 4 | 40 | 50 | 490 | 25 | M8 | 19 | ||
| 5 | 42 | 50 | 930 | 28 | M8 | 42 | ||
| 5 | 50 | 65 | 750 | 31 | M8 | 22 | ||
| 6 | 52 | 60 | 1150 | 35 | M10 | 46 | ||
| 6 | 60 | 80 | 1000 | 40 | M10 | 25 |
Displaying 10 of 20
