ISO Die Springs
Our ISO die springs are strong compression springs made with rectangular wire. This shape gives them extra power, making them perfect for use in press tools, valves, clutches, fixtures, and other places where you need a lot of force but have limited space. We offer several force levels for the same size of spring, so you can choose the right strength without changing your design. All our ISO die springs follow international standards, giving you reliable performance and long-lasting quality. even in tough conditions.

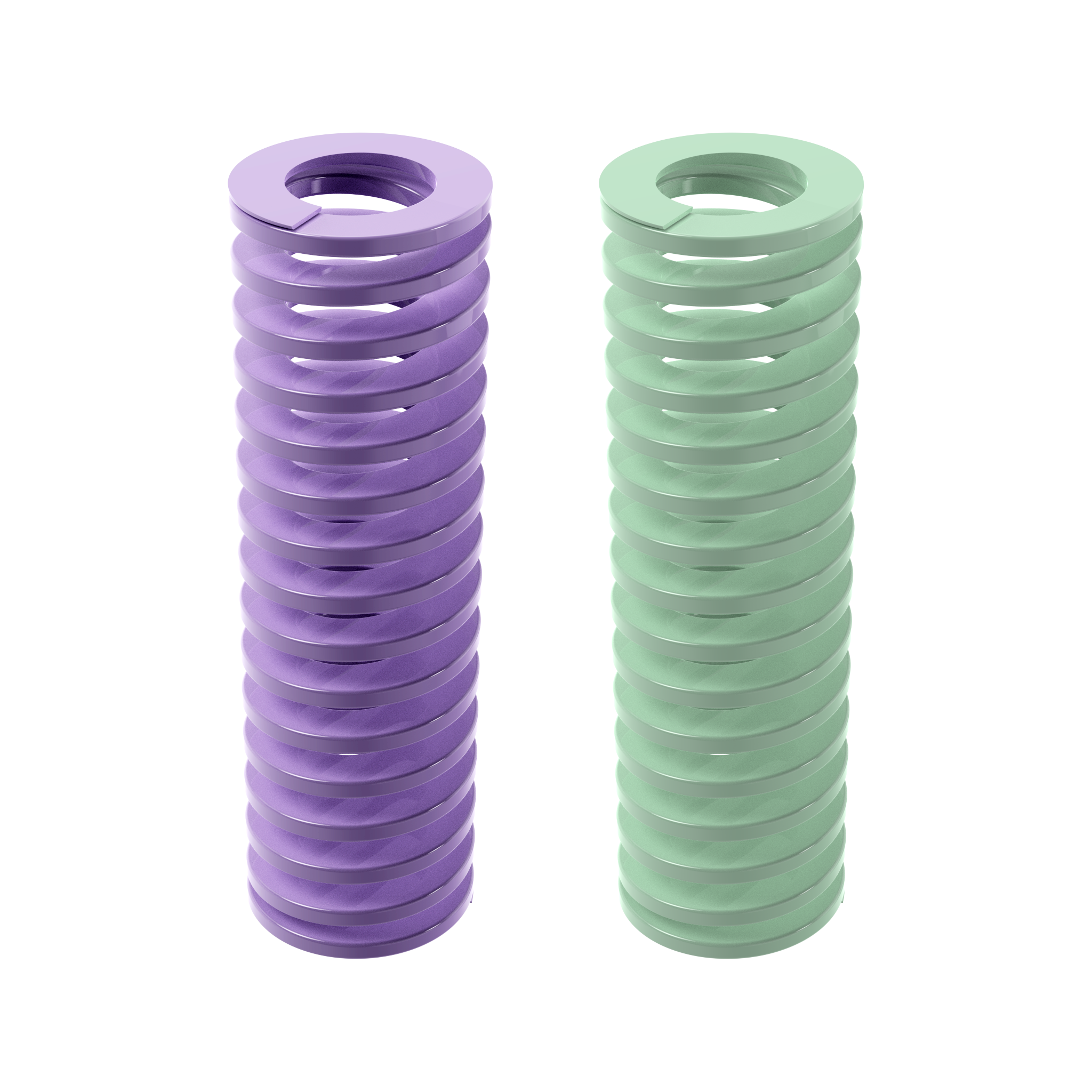

L-Green/Purple

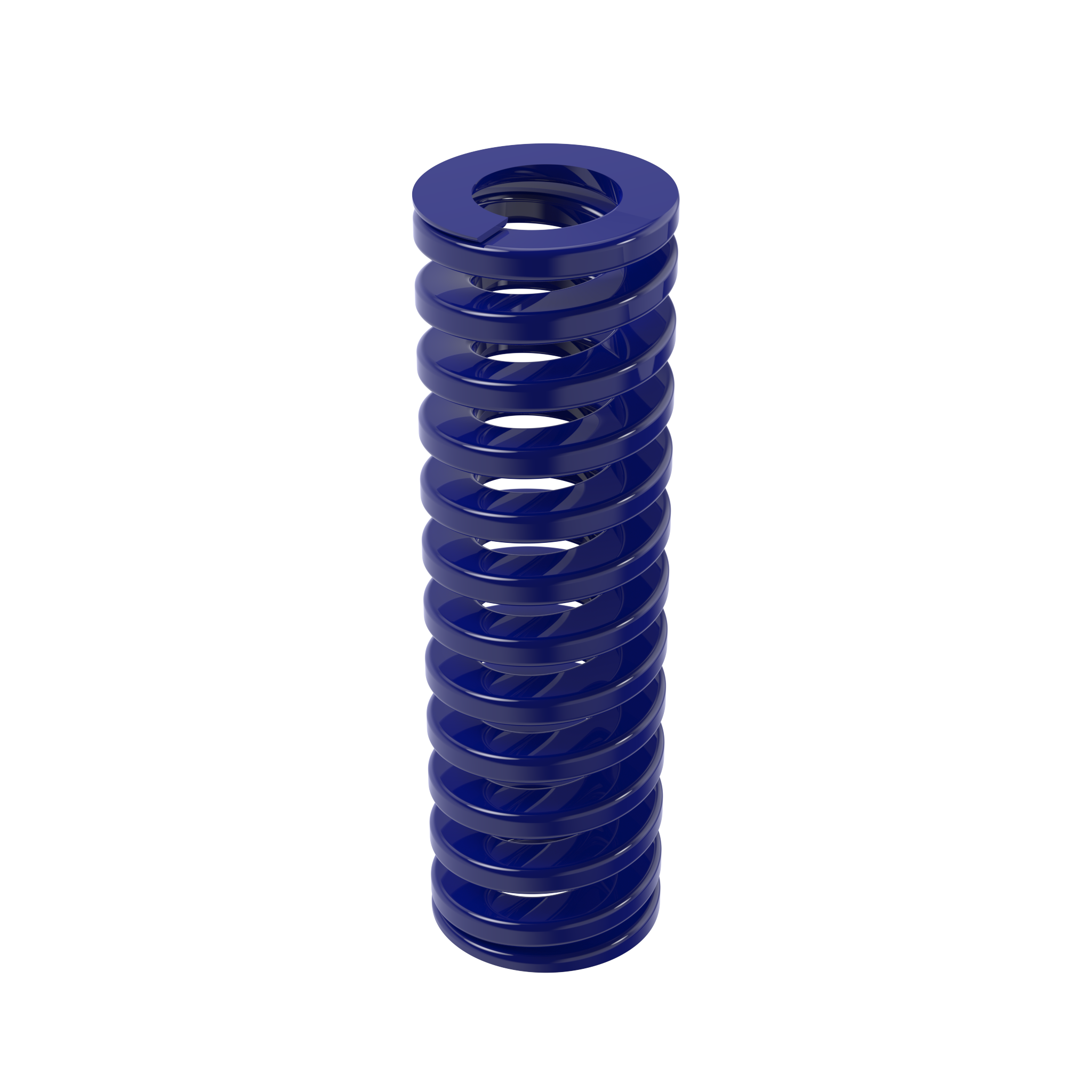

2-Blue

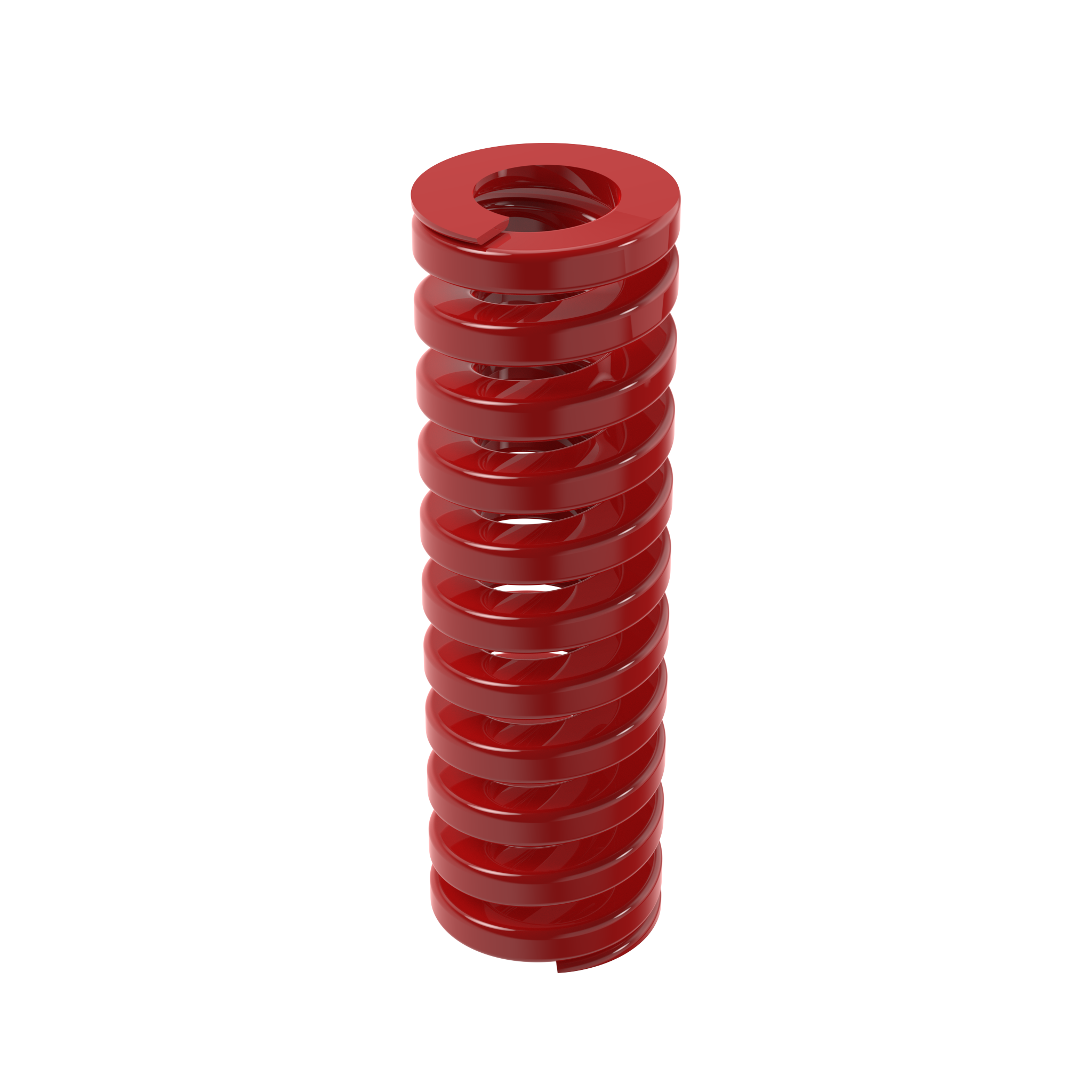

3-Red

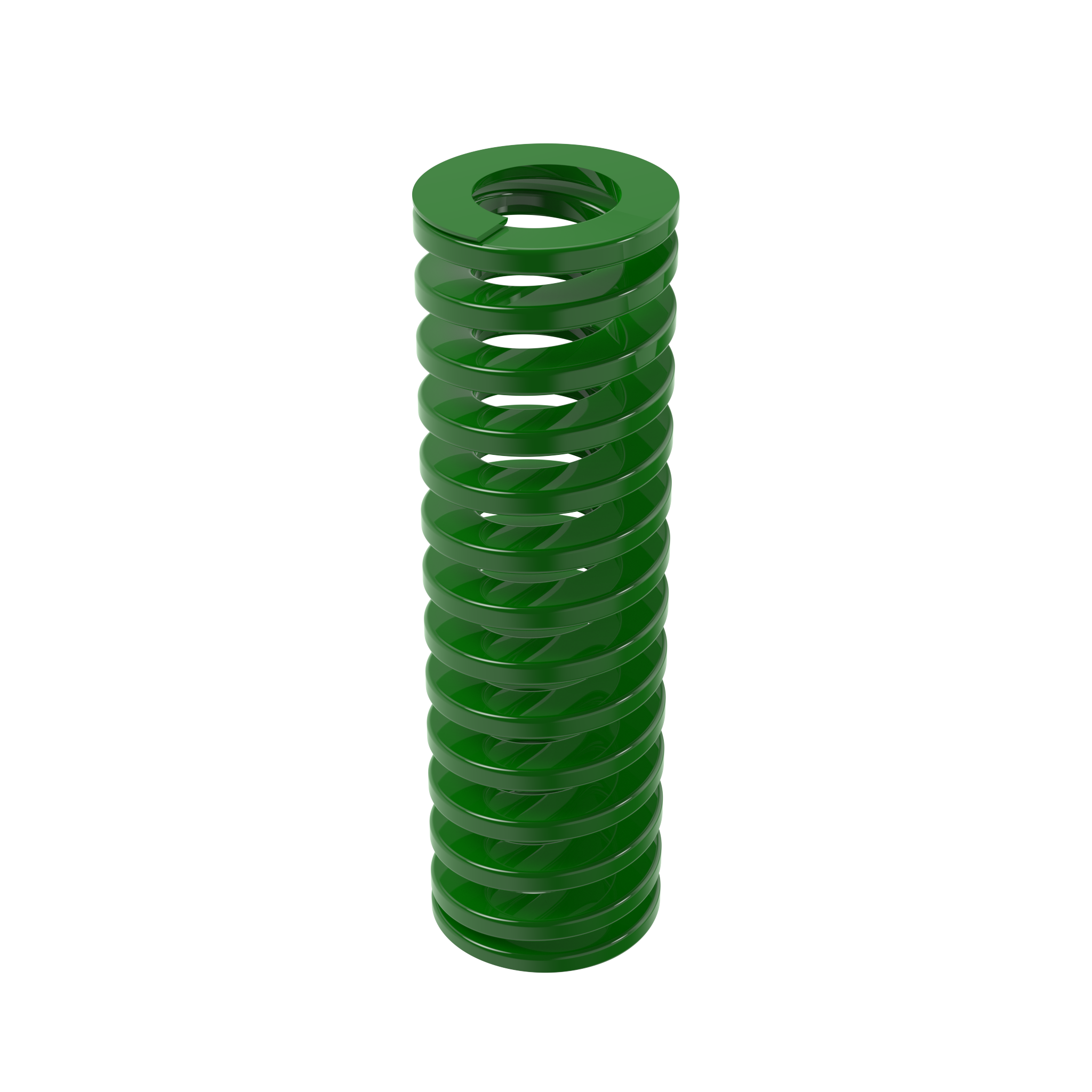

1-Dark green

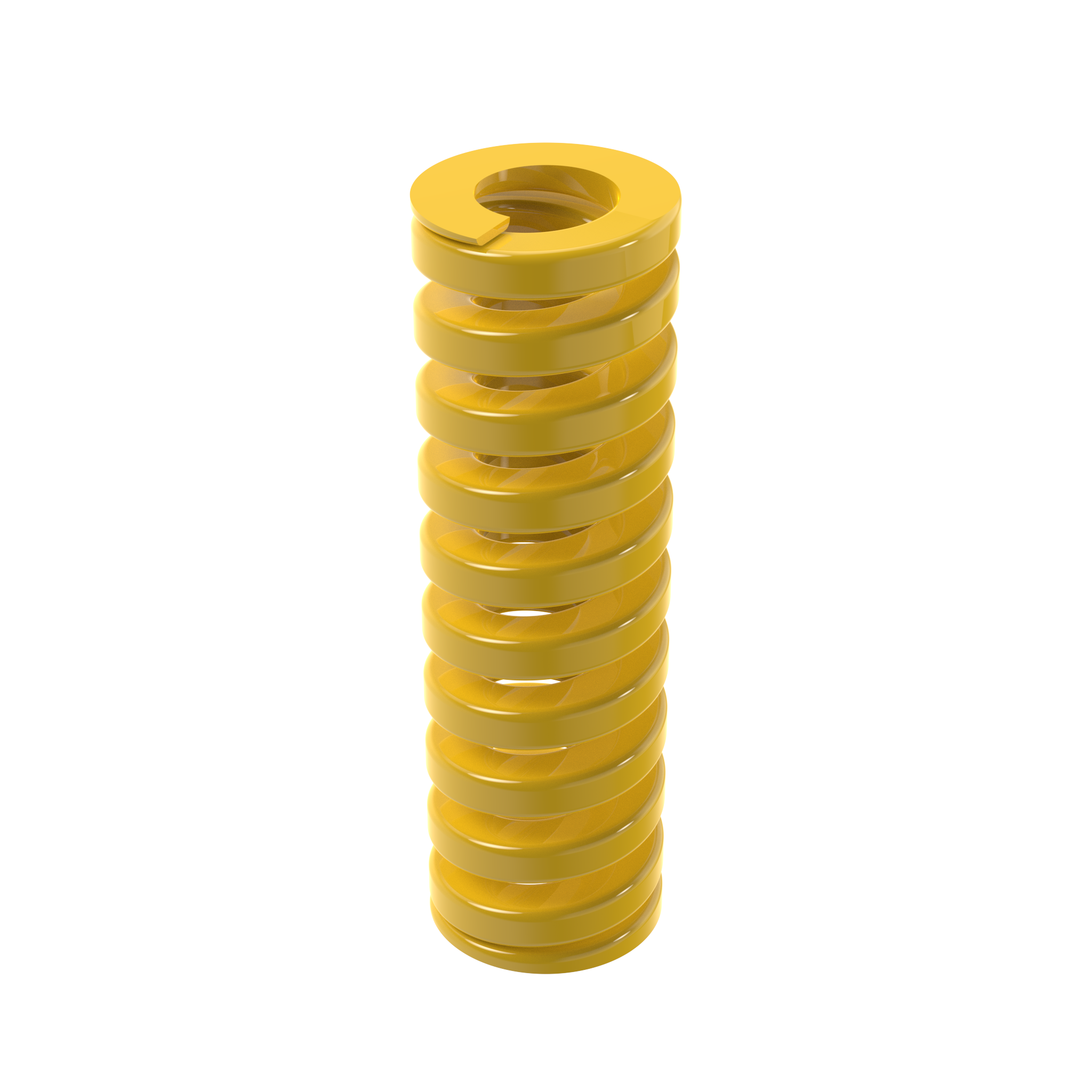

4-Yellow

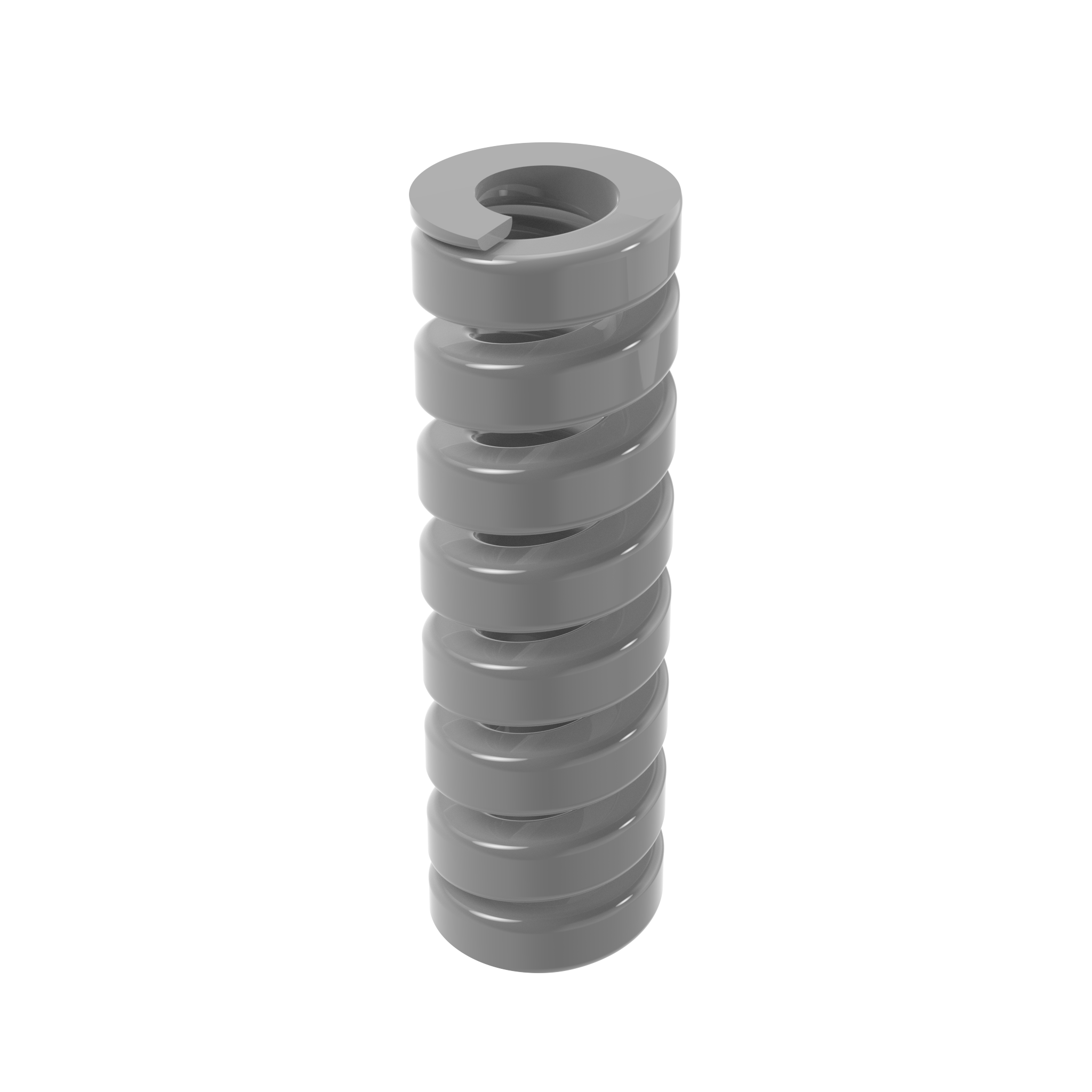

5-Grey
6-White
| 648 items | A (mm) | B (mm) | L0 (mm) | F3 (N) | Fc | R (N/mm) | ||
|---|---|---|---|---|---|---|---|---|
 | 10 | 5 | 25 | 96 | L-Green/Purple | 8.5 | ||
 | 10 | 5 | 25 | 100 | 1-Dark green | 10 | ||
 | 10 | 5 | 25 | 150 | 2-Blue | 16 | ||
 | 10 | 5 | 25 | 166 | 3-Red | 22.1 | ||
 | 10 | 5 | 25 | 232 | 4-Yellow | 36.8 | ||
 | 10 | 5 | 25 | 564 | 5-Grey | 167 | ||
| 10 | 5 | 32 | 94 | L-Green/Purple | 6.5 | ||
| 10 | 5 | 32 | 109 | 1-Dark green | 8.5 | ||
| 10 | 5 | 32 | 156 | 2-Blue | 13 | ||
| 10 | 5 | 32 | 168 | 3-Red | 17.5 |
Displaying 10 of 648
