  • A 63000/63001/63002 Die Spring

  • 63001

    Die spring A-10032

    List price

    3.42 EUR/pcs

    excl. VAT

    Next delivery date 23/6/2026
    QuantityList price
    Buy 1 - 9 at the price of3.42 EUR/pcs
    Buy 10 - 24 at the price of3.26 EUR/pcs
    Buy 25 - 49 at the price of3.08 EUR/pcs
    Buy 50 - 99 at the price of2.90 EUR/pcs
    Buy 100 - 199 at the price of2.75 EUR/pcs

    If a larger quantity is desired please contact customer support for price

Dimensions and characteristics

AHole diameter
9.5 mm
BShaft diameter
4.8 mm
L0Unloaded length
31.75 mm
F3Force at s3
111 N
FcForce class
A-Blue/white
RSpringrate
8.8 N/mm
s1Spring deflection at F1
7.9 mm
F1Force at s1
69 N
s2Spring deflection at F2
11.1 mm
F2Force at s2
97 N
s3Spring deflection at F3
12.7 mm
~sstSpring deflection at solid length
15.9 mm
NtNumber of coils
14.3
tWire thickness
1 mm
wWire width
1.96 mm
VsDie spring type
US Range

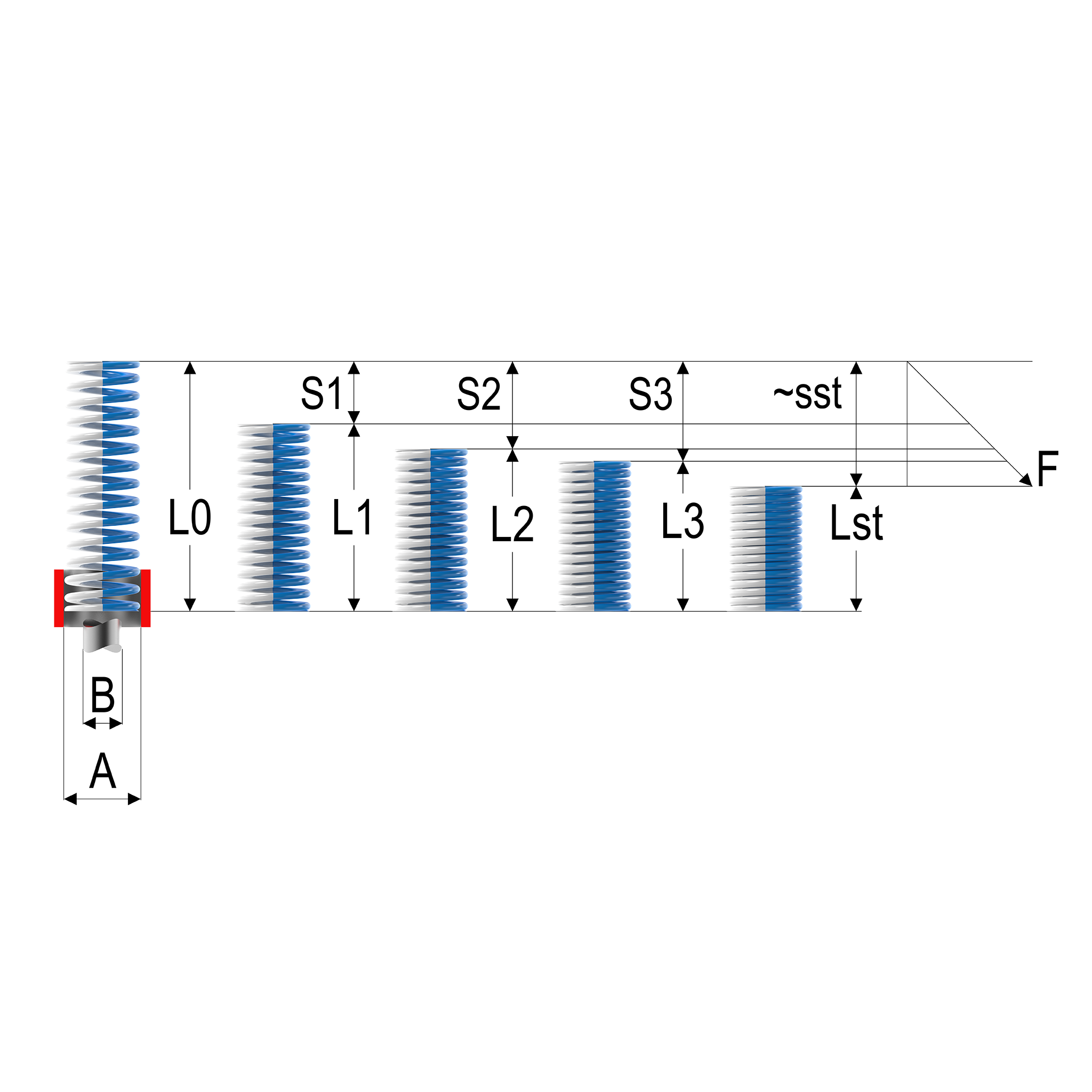

Dimensions of a 63000/63001/63002 Die Spring
