  • A 63227/63228 Die Spring

  • 63227

    Die spring C-10025

    List price

    3.42 EUR/pcs

    excl. VAT

    186 in stock
    QuantityList price
    Buy 1 - 9 at the price of3.42 EUR/pcs
    Buy 10 - 24 at the price of3.26 EUR/pcs
    Buy 25 - 49 at the price of3.08 EUR/pcs
    Buy 50 - 99 at the price of2.90 EUR/pcs
    Buy 100 - 199 at the price of2.75 EUR/pcs

    If a larger quantity is desired please contact customer support for price

Dimensions and characteristics

AHole diameter
9.5 mm
BShaft diameter
4.8 mm
L0Unloaded length
25.4 mm
F3Force at s3
129 N
FcForce class
C-Gold/white
RSpringrate
20.3 N/mm
s1Spring deflection at F1
3.8 mm
F1Force at s1
77 N
s2Spring deflection at F2
5.1 mm
F2Force at s2
103 N
s3Spring deflection at F3
6.4 mm
~sstSpring deflection at solid length
7.6 mm
NtNumber of coils
10.9
tWire thickness
1.5 mm
wWire width
1.9 mm
VsDie spring type
US Range

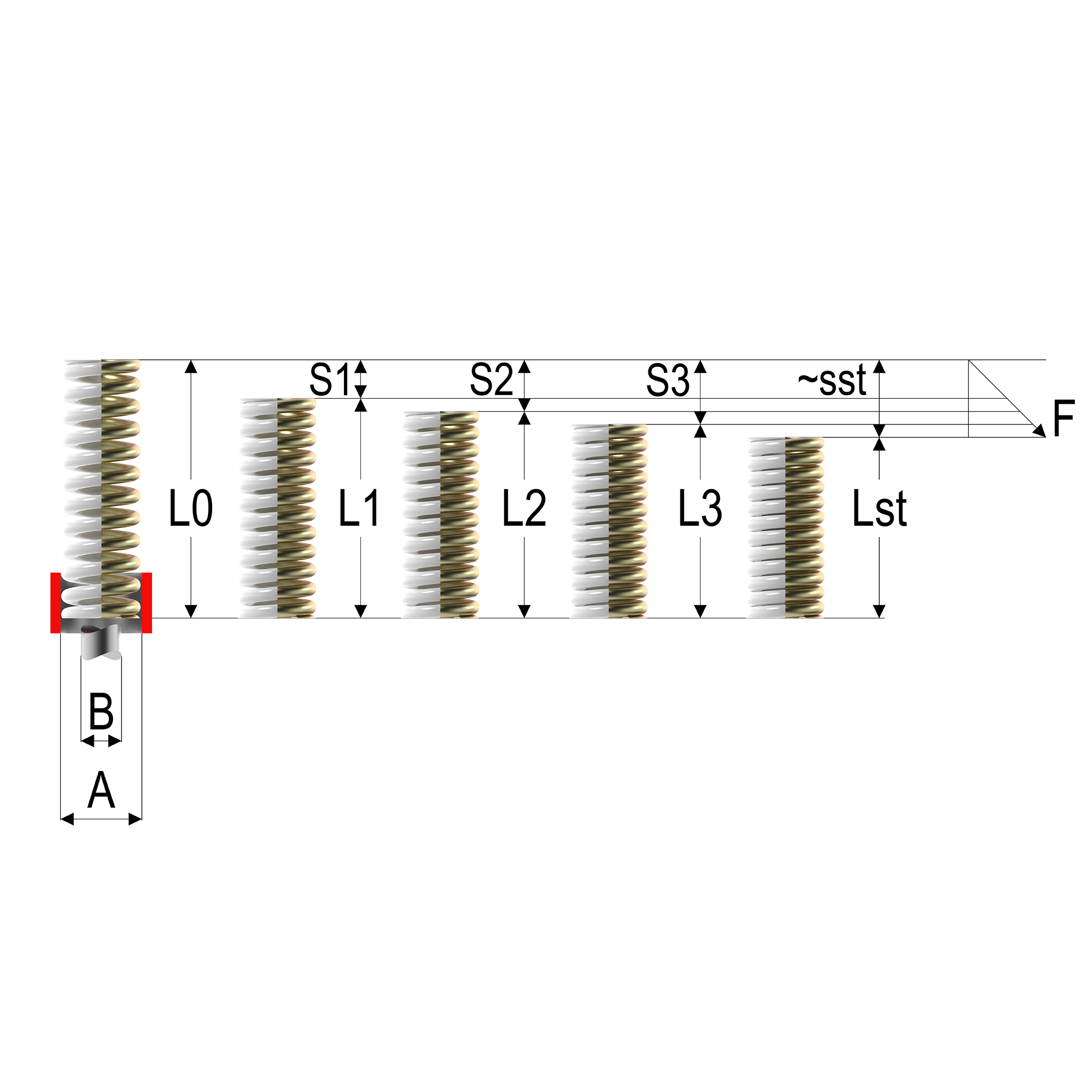

Dimensions of a 63227/63228 Die Spring
