  • A 63326/63327 Die Spring

  • 63326

    Die spring D-10025

    List price

    4.48 EUR/pcs

    excl. VAT

    248 in stock
    QuantityList price
    Buy 1 - 9 at the price of4.48 EUR/pcs
    Buy 10 - 24 at the price of4.26 EUR/pcs
    Buy 25 - 49 at the price of4.02 EUR/pcs
    Buy 50 - 99 at the price of3.80 EUR/pcs
    Buy 100 - 199 at the price of3.58 EUR/pcs

    If a larger quantity is desired please contact customer support for price

Dimensions and characteristics

AHole diameter
9.5 mm
BShaft diameter
4.8 mm
L0Unloaded length
25.4 mm
F3Force at s3
187 N
FcForce class
D-Green/white
RSpringrate
36.8 N/mm
s1Spring deflection at F1
3.8 mm
F1Force at s1
140 N
s2Spring deflection at F2
4.3 mm
F2Force at s2
159 N
s3Spring deflection at F3
5.1 mm
~sstSpring deflection at solid length
6.4 mm
NtNumber of coils
11.6
tWire thickness
1.5 mm
wWire width
1.97 mm
VsDie spring type
US Range

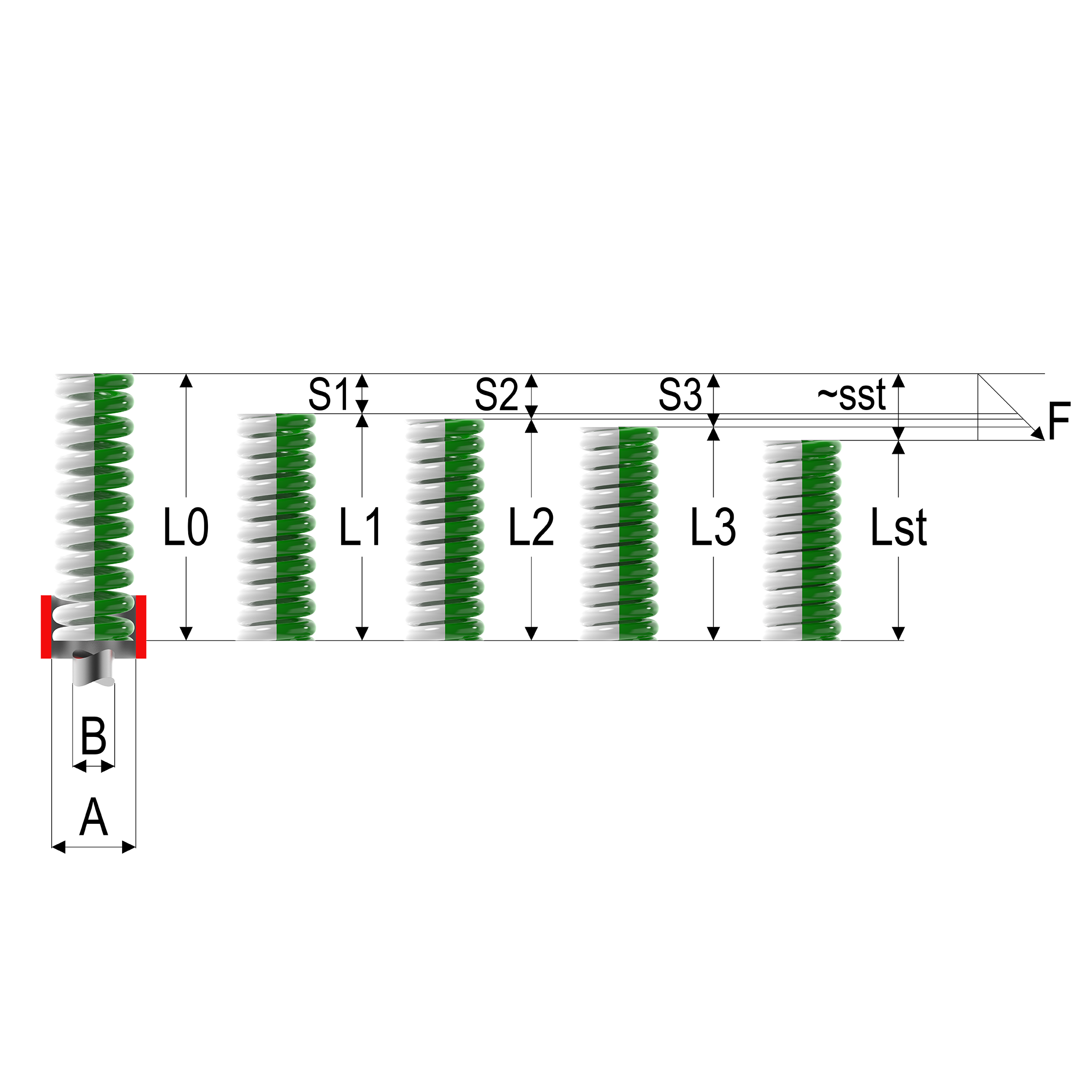

Dimensions of a 63326/63327 Die Spring
